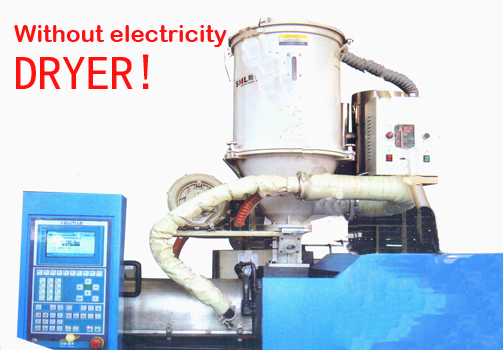

Waste heat recovery energy-saving injection molding machine drying system



Introduction:
  It consists of heat recovery parts,transmission parts,control parts,injection molding machine barrel can be heat use,can be completely energy-saving drying barrel for drying and electricity consumption.
  The heat collecting cover,a hot air conveying system,automatic cooling system,hot air automatic compensation system,electric control system,including the structure of the device filter device.
  ①Gathering heat cover---The heat collecting barrel out walking.
  ②Air conveying system---The collected heat through the fan to the drying barrel,used as the drying of plastic raw materials.
  ③Automatic cooling system---When the collection of plastic material drying heat energy exceeds the normal temperature,the system will automatically work drying temperature,resulting in material drying temperature is normal.
  ④Hot air compensating system---When the drying temperature is not enough,can automatically compensate the recovery of hot,in order to make baked sizes reach normal.
  ⑤Filtering device---Filter material barrel blowing dust,keep the floor clean.

characteristics:

  Electricity:Heat energy recovery and utilization;using high efficient heat collecting technology;save electricity.
  Cooling:Reduce heat emission;using energy closed-loop control technology to reduce the temperature of a workshop.
  Environmental protection:Filtering recycling flow;temperature devices to keep workshop clean and efficient air filter.

Specifications:

Injection molding machine:HT80T    Desiccant capacity:50KG    Plastic:ABS 85Degree
  per hour
Install front
Install After
Energy saving
Energy saving ratio
Barrel

4.5Degree

2Degree

2.5Degree

55%
Drier
Monthly province electricity
2.5Degree*24hr.*30Day*0.85=1530(rmb)
